Adding an aftermarket amplifier to your Lexus RX can dramatically improve your audio experience. Whether you’re driving a 2010 RX 350 or a newer 2023 model, the process involves similar steps but requires careful attention to your vehicle’s specific wiring and audio system configuration.
To conNeeded n aftermarket amplifier to your Lexus RX, you’ll need to run power wire from the battery, connect ground wire to the chassis, tap into speaker-level signals behind the head unit or use a line output converter, and run remote turn-on wire. The process typically takes 3-4 hours and requires basic tools plus knowledge of your RX’s factory audio system layout.
Contents

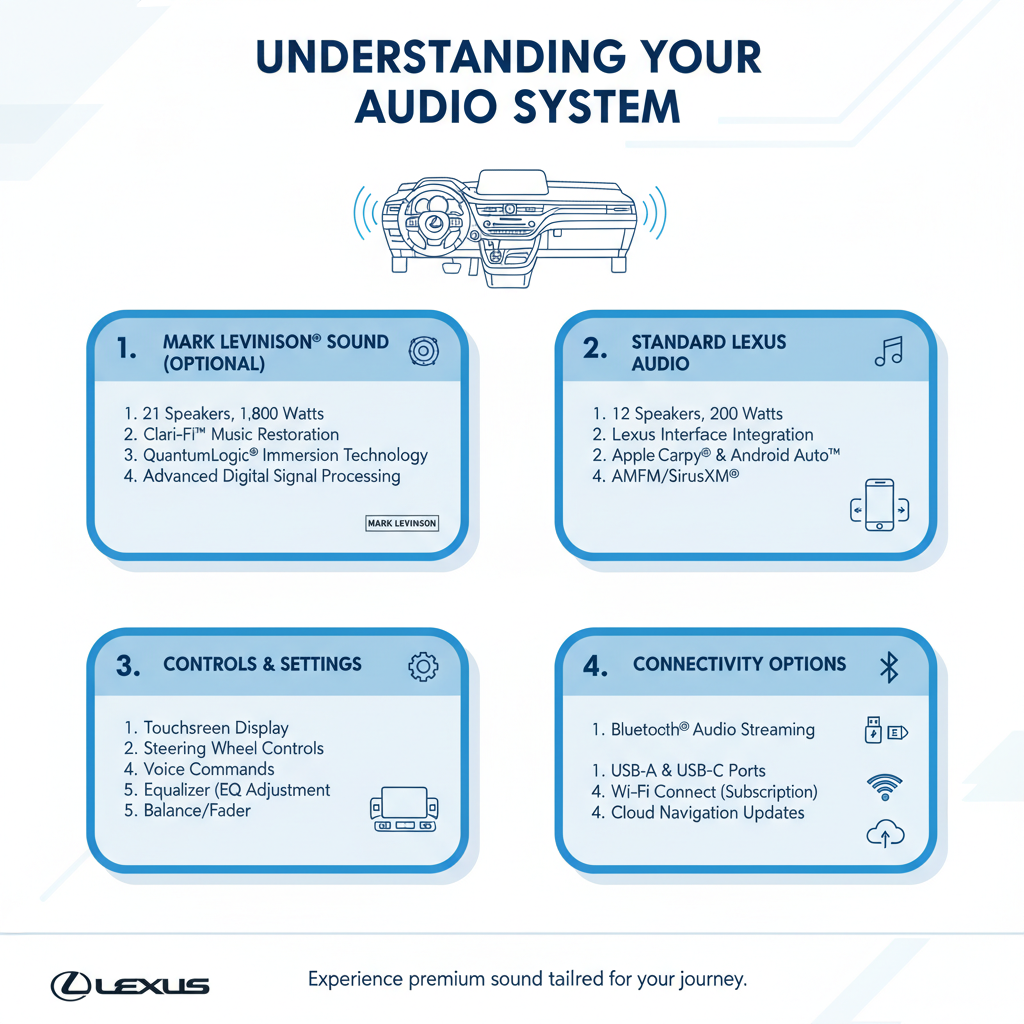

Understanding Your Lexus RX Audio System
Before starting the installation, identify which factory audio system your RX has. Most models come with either a basic system or the premium Mark Levinson setup.
The Mark Levinson system uses a factory amplifier located in the cargo area, while basic systems amplify audio through the head unit. This distinction affects how you’ll tap into audio signals.
For RX models from 2016 onward, the infotainment system integrates more deeply with vehicle functions, making signal access slightly more complex but still manageable.

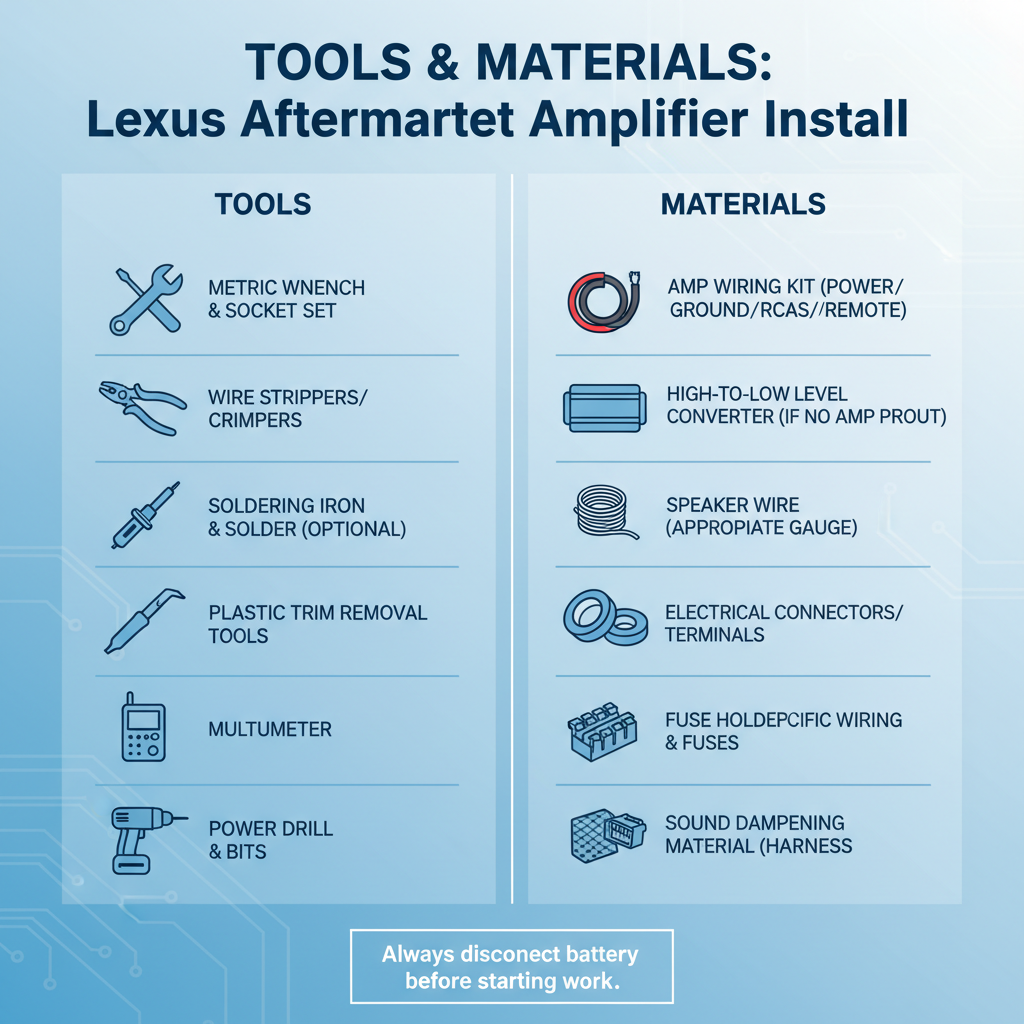

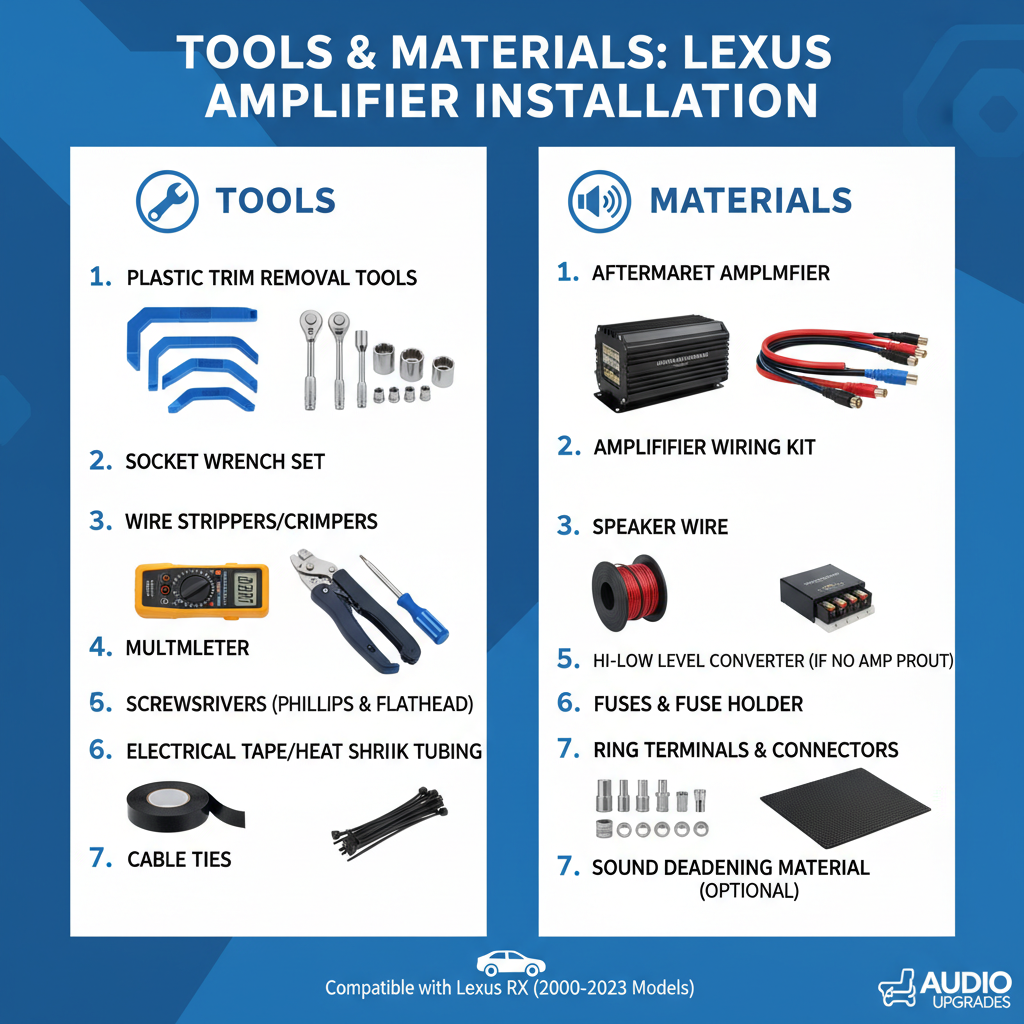

Tools and Materials Needed
Essential Tools
– Wire strippers and crimpers
– Multimeter for testing connections
– Panel removal tools for interior trim
– Drill with various bit sizes
– Socket set for battery terminals
Required Materials
– Amplifier power wire (4-8 gauge depending on amp)
– Ground wire (same gauge as power wire)
– Remote turn-on wire (18 gauge)
– RCA cables or line output converter
– Fuse holder and appropriate fuse
– Wire connectors and electrical tape
Step-by-Step Installation Process
Power Wire Installation
Start by disconnecting the negative battery terminal for safety.
Run the power wire from your battery through the firewall. In most Lexus RX models, you’ll find existing grommets near the brake booster that can accommodate the wire.
Route the wire along the driver’s side, tucking it under trim panels to keep it hidden and protected from foot traffic.
Install an appropriate fuse (typically 60-100 amps) within 18 inches of the battery connection.
Ground Connection
Find a solid metal grounding point in your cargo area or under a seat. Remove paint and rust to ensure clean metal contact.
The ground wire should be the same gauge as your power wire and as short as possible for optimal performance.
Audio Signal Connection
Method 1: Line Output Converter
If your RX has the basic audio system, use a line output converter (LOC) to tap into speaker wires behind the head unit.
Access the head unit by removing dashboard panels carefully. AudioControl LC2i and PAC LP3-4 are reliable LOC options that work well with Lexus systems.
Connect the LOC’s input wires to the factory speaker wires, then run RCA cables from the LOC to your amplifier.
Method 2: Factory Amplifier Bypass
For Mark Levinson equipped models, you can tap into pre-amplified signals at the factory amp location in the cargo area.
This method requires identifying the correct wires using a wiring diagram specific to your model year.
Remote Turn-On Wire
Connect the remote wire to a switched 12V source that activates with the ignition. The accessory wire at the head unit works perfectly for this purpose.
Some installers prefer using the factory amplifier’s remote wire if bypassing the system entirely.
Amplifier Placement Options
Cargo Area Installation
The most common location is under the cargo floor or mounted to the side panel. This keeps the amplifier hidden while providing adequate ventilation.
Ensure at least 6 inches of clearance around the amplifier for cooling.
Under-Seat Mounting
Compact amplifiers can fit under front seats, though space is limited in the RX due to seat adjustment mechanisms.
This location keeps wire runs shorter but may restrict seat movement.
Common Wiring Challenges
Factory Integration Issues
Newer RX models with advanced infotainment may show error messages when speaker loads change. Using a PAC AmpPRO AP4-TY41 integration adapter can prevent these issues.
Premium Audio Complications
Mark Levinson systems use digital signal processing that can complicate aftermarket integration. Consider using amplifiers with built-in digital signal processing like the JL Audio VXi series.
Noise Issues
Ground loops can cause alternator whine or other noise. Ensure all grounds are solid and consider using a ground loop isolator if problems persist.
Testing Your Installation
Before reassembling everything, test all connections with a multimeter.
Verify power wire shows battery voltage, ground connection reads less than 0.1 ohms resistance, and remote wire activates with ignition.
Play audio at moderate volume to check for distortion or noise issues.
Frequently Asked Questions
Can I install an amplifier without removing the factory head unit?
Yes, you can use a line output converter to tap into speaker wires at the speakers themselves or use integration adapters that connect behind the head unit without removal.
Will adding an amplifier void my Lexus warranty?
Aftermarket audio modifications typically don’t void the entire vehicle warranty, but any damage caused by improper installation won’t be covered. Professional installation is recommended for newer vehicles under warranty.
What size amplifier works best for the Lexus RX?
Most RX owners choose 4-channel amplifiers in the 75-100 watts per channel range. Popular choices include models from Alpine, JL Audio, and Rockford Fosgate that fit the available space.
Do I need special adapters for the Mark Levinson system?
While not always necessary, integration adapters like those from PAC or Axxess can prevent error messages and maintain factory features when adding amplifiers to premium audio systems.
How long does installation typically take?
A basic amplifier installation takes 3-4 hours for someone with moderate experience. First-time installers should plan for 6-8 hours and consider professional help for complex integrations.
Can I add a subwoofer amplifier using the same method?
Yes, the same basic process applies. You’ll need additional bass signal processing, either through a dedicated subwoofer output or by using a bass restoration processor for full-range signals.
What’s the best way to hide wiring in the RX?
Use existing wire channels along door sills and under trim panels. The RX has several factory wire harness routes that can accommodate additional wiring when done carefully.
Conclusion
Connecting an aftermarket amplifier to your Lexus RX enhances audio quality significantly while maintaining the vehicle’s refined appearance. Success depends on understanding your specific model’s audio system configuration and using appropriate integration methods.
Take time to plan wire routing, use quality materials, and test thoroughly before final assembly. When done correctly, your amplifier installation will provide years of improved audio enjoyment while preserving your RX’s reliability and resale value.
Consider professional installation if you’re uncomfortable with any aspect of the process, especially on newer models with complex factory integration requirements.
